Reference RF00U1557

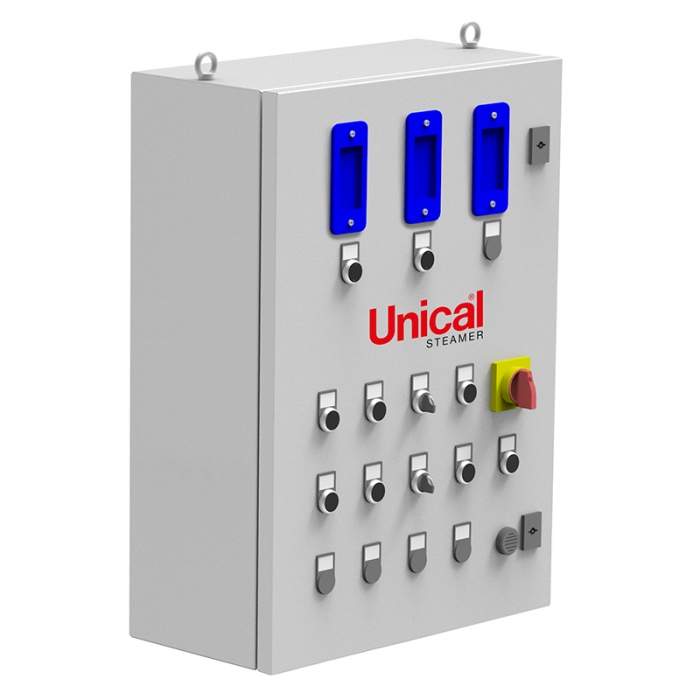

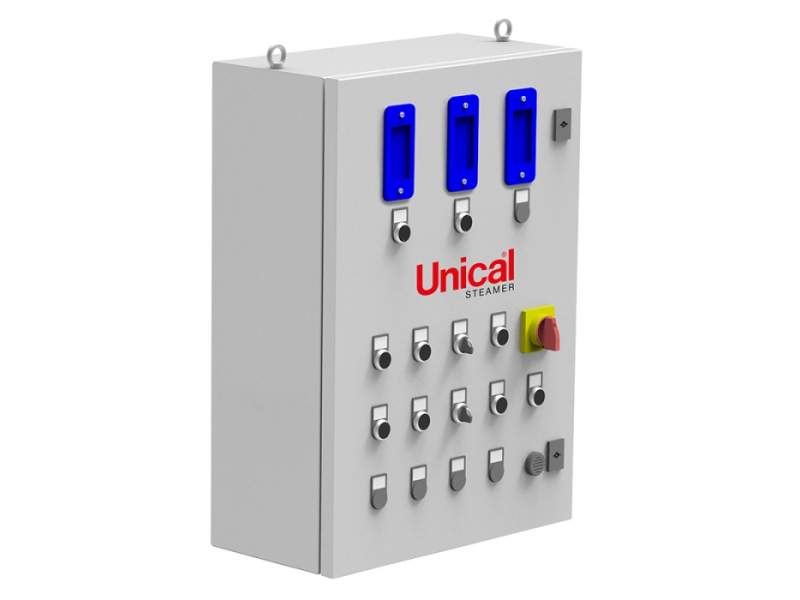

Electric Panel BASIC

CHARACTERISTICS:

One and two stage burner regulation
ON / OFF level regulation
N. 2 safety level switches on low level SIL-2
Expandability through optional kits
Electrical protection degree IP 55

Regualtion simplicity
The boiler regulation is committed to a board panel with electromechanical components that allows to obtain numerous advantages, among which:

Simple use

Kit fitting:
- high level
- management of a second water feeding pump

Installation
The board panel is supplied with fast multi-pole connections that simplify the installation on to the boiler.

Safety

The board panel allows the automatic regulation of the steam boiler
On the board panel are fitted the components that allow,
if necessary, the manual operation of the steam boiler.
