Electric Panel IML (Industrial Multi Logic)
RF00U1555
Electric Panel IML (Industrial Multi Logic)
CHARACTERISTICS:
- Control logic based on PLC of primary international brand (possible specific brands on request)

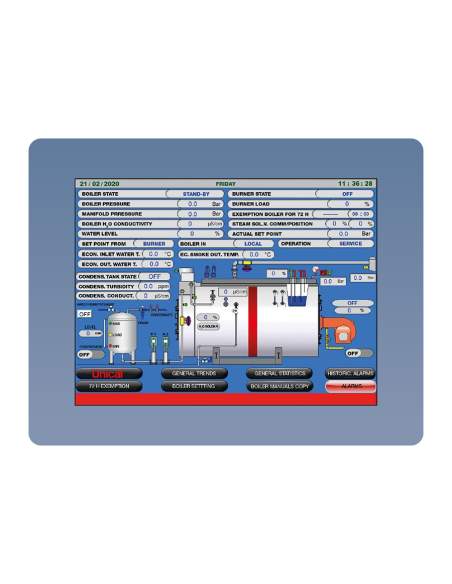

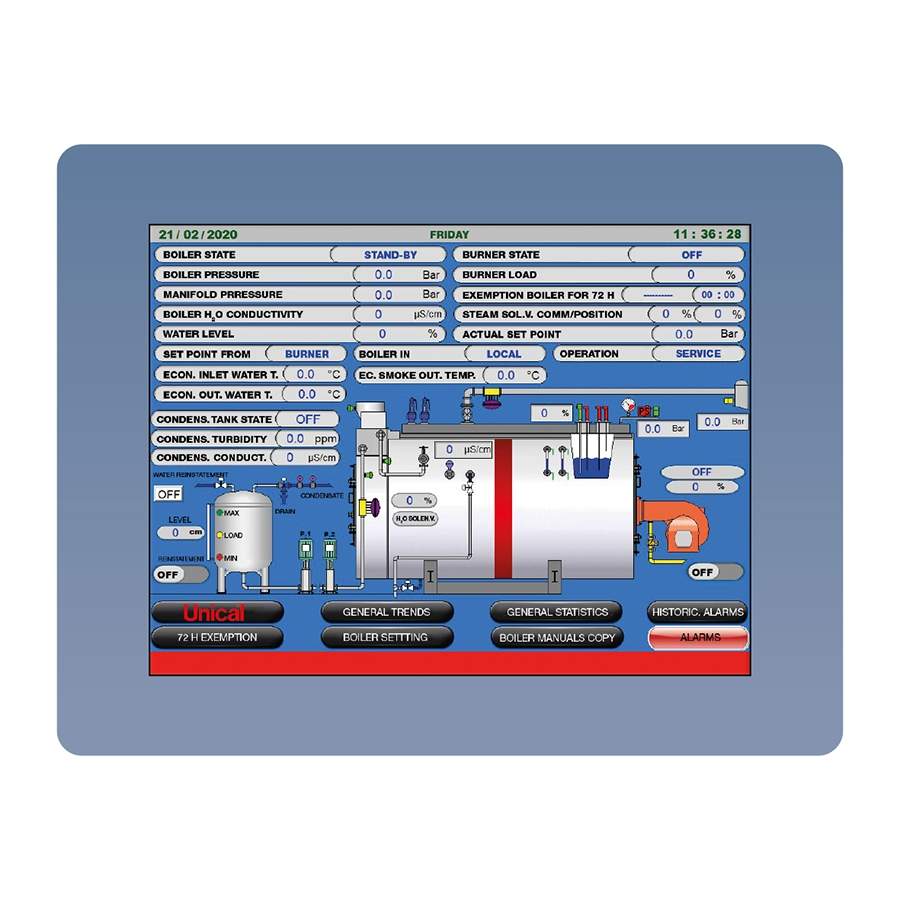

- 10” touch screen with graphic interface
- Single, two / three-stage, modulating burner adjustment
- ON / OFF or modulating water level adjustment, with valve or inverter
- Nr. 2 PED level switches for low level safety
- Possibility of box or floor standing construction
- Expandability with optional kits
- Possibility of displaying boiler (and system) user statistics and trend of values of interest
- Possibility of managing single generator or in cascade (if more boilers are present)
- Communication capability via Modbus TCP / IP or Profinet
- Boiler and plant supervision and management via VNC or VPN
- Standard power supply: 400 Vac three-phase with Neutral - 50 Hz (different power supplies on request)
- IP54 protection degree
scroll to Description tab to view full description of the machine
Quick contact
Electric Panel IML (Industrial Multi Logic)
CHARACTERISTICS:
- Control logic based on PLC of primary international brand (possible specific brands on request)
- 10” touch screen with graphic interface
- Single, two / three-stage, modulating burner adjustment
- ON / OFF or modulating water level adjustment, with valve or inverter
- Nr. 2 PED level switches for low level safety
- Possibility of box or floor standing construction
- Expandability with optional kits
- Possibility of displaying boiler (and system) user statistics and trend of values of interest

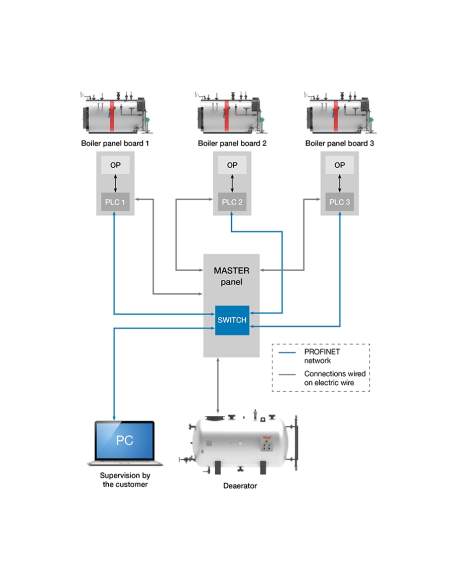

- Possibility of managing single generator or in cascade (if more boilers are present)
- Communication capability via Modbus TCP / IP or Profinet
- Boiler and plant supervision and management via VNC or VPN
- Standard power supply: 400 Vac three-phase with Neutral - 50 Hz (different power supplies on request)
- IP54 protection degree
Simplicity and efficiency
The boiler electrical panel contains the generator command and control devices. It collects the digital and analogue signals coming from the boiler and the burner, and powers all the various users on board of the Boiler-Burner group.
The boiler panel is designed for a standard power supply of 400 Vac three-phase with Neutral at 50 Hz and has an IP 54 protection degree.
It is equipped with a PLC that manages all the control logics of the Boiler-Burner group.
The safety devices of the boiler are made with certified instruments and electro-mechanically managed through a third category safety module.
Possibility of integrating the burner safety devices into the control system, on specific request.
The system provides manual control for all boiler users (except the burner) and where this is possible.
The purpose of the manual control is for a simple functional test or for reaching the minimum boiler ignition conditions automatically.
