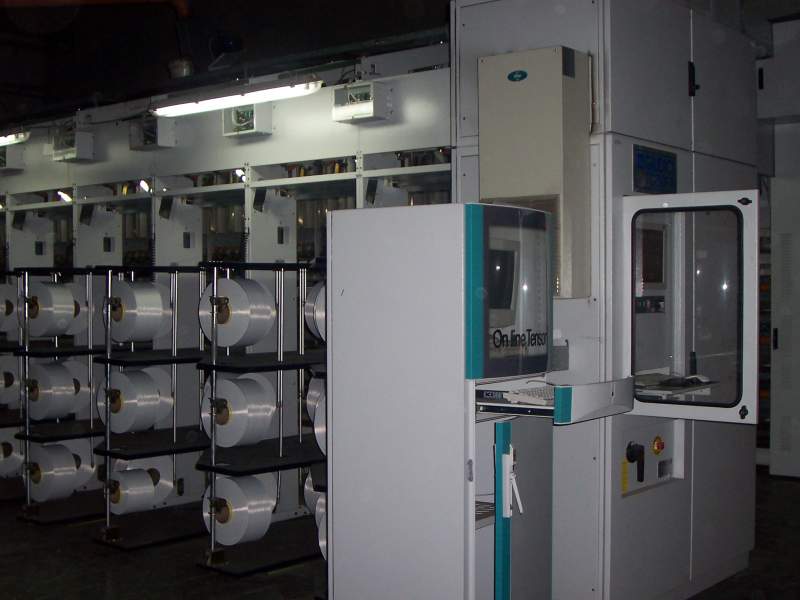

GIUDICI frictions Texturizing machine
GIUDICI frictions Texturizing machine
mod. TG30 FA
Double oven and automatic doffing for polyester yarns of whole range of textile titles,
84 positions , distribuited on 3 floors of collection and 84 TEMCO friction spindles mod. FTS525 ME open/closed, fastly change of torsion, friction and driving disks in ceramic , diam. mm 52 and thickness 9 mm., shaft diam. mm.14,5 , combination disks 1/8/1
Machine equipped with :
-Extra roller for the control of tension
-Air interlacing device ( that is regulator of pressure, piping, valves and quick coupling)
–GQS System ( Giudici Quality system) to control the tension of yarn , integrated with the machine
————————————————————————————————————————————————————
POSITIONs : 84 one side only
SECTION GAUGE : 1700 mm
FLOORS OF COLLECTION: 3
POSIZION FOR SECTION : 12
TITLES : usually from 10 to 300 den.
COMPUTERIZED CONTROL SYSTEM
with touch screen central computer that controls the automatic doffing and allows the programming and displaying of several dates such as : basic speed,drawing ratio,speed of spindles,collection speed,oiling thread,weight spools of collection,temperature of oven
AUTOMATIC DOFFING SYSTEM :
a pneumatic system for each positions keep out the spools and replaces it with an empty tube, without operator input
capacity collection spools : 3 plus 1 at work
capacity collection tubes : 6
SPINDLES :
TEMCO spindles mod.FTS 525 ME open/closed ,fastly change od torsion, friction and driving disks in ceramic , diam. mm 52 , thickness 9 mm., shaft diam.mm.14,5
Combination disks 1/8/1
TORSIONS :
adjustable depending on the characteristics of the yarn
TORSIONS DIRECTIONS :
S or Z or alternate S and Z
FEEDING ROLLERS :
steel feeding rollers diam. 120 mm in contact with roller covered with polyurethane diam .85 mm
MAIN TEXTURIZING OVEN :
Heat insulated oven with electronic regulation
electronically controlled individual
fume suction at both ends
Possibility to move it in vertical position to clean
length oven mt 0.50
range temperatures : untill 240 ° C
SECONDARY OVEN
Electric , closed, with the area of temperature regulating
Quick contact
